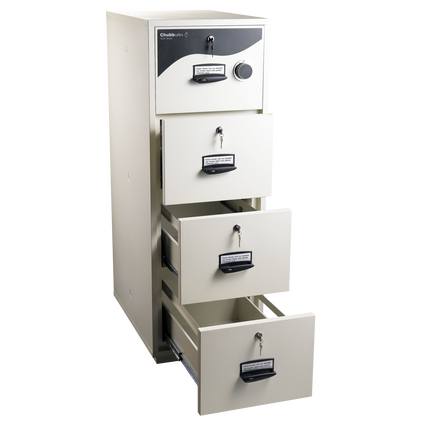

RPF 5200 Series
KEY FEATURES
• Door - The body has an overall thickness of 57mm insulated with Chubbsafes patented PCDE fire resistant material. Proofing materials used are also asbestos-free, reliable, stable, well aerated and will not deteriorate with age.
• Drawer - The drawer is constructed with an overall thickness of 56mm. The proofing material is identical to the material used in the body of the cabinet. Each drawer is also suspended on full extension rails with bearings for durability and for ease of use. The drawers have been designed to fit most paper hoist and box files.
• Locking - The Chubbsafes RPF cabinet comes in 2 locking variants:
Central Locking - One 3-wheel keyless combination lock and one key lock on the top drawer; controlling all drawers.
Individual Locking - One 3-wheel keyless combination lock and key lock on the top drawer; controlling all drawers. In addition, there is one key lock on each subsequent drawer for individual locking.
• Available in two versions -
i) 5100 series (1 hour fire rated)
ii) 5200 series (2 hour fire rated)
Both series are in compliance to UL 72 Class 350 (Fire Endurance Test) which represents one of the highest and most stringent test currently used to evaluate record protection equipment.
• Finish - A scratch resistance Polyurethane based finish.
External Dimensions:
- 5102/5202 (Two Drawer): H839 x W551 x D824 (mm)- 5103/5203 (Three Drawer): H1206 x W551 x D824 (mm)
- 5104/5204 (Four Drawer): H1573 x W551 x D824 (mm)
**Clear Depth Over Furniture: 1480mm
**Furniture Projection: 40mm
Drawer's Internal Dimensions: H292 x W387 x D645 (mm)
Nett Weight:
5102/5202 (Two Drawer): 210KG
5103/5203 (Three Drawer): 310KG5104/5204 (Four Drawer): 390KG
